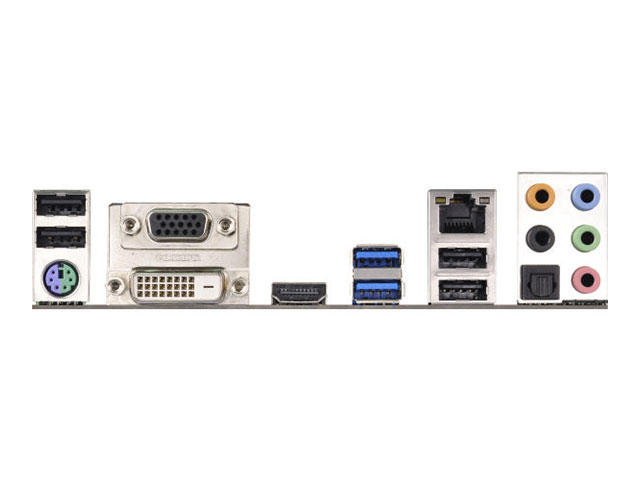

Интерфейси:

• 1x PS/2 порт за мишка/клавиатура
• 1x D-Sub
• 1x DVI-D
• 1x HDMI
• 1x Optical SPDIF Out
• 4x USB 2.0
• 2x USB 3.0
• 1x RJ-45 LAN
• HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
• 6x SATA3 6.0

Слотове за разширение:

• 1x PCI Express 3.0 x16 Slot (PCIE1 @ x16 mode)
• 1x PCI Express 2.0 x16 Slot (PCIE3 @ x4 mode)
• 1x PCI Express 2.0 x1 Slot
• 1x PCI Slot
• Поддържа AMD Quad CrossFireX, CrossFireX и Dual Graphics

Конектори:

• 1x IR Header
• 1x Print Port Header
• 1x COM Port Header
• 1x Chassis Intrusion Header
• 1x TPM Header
• 1x Power LED Header
• 2x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
• 1x Chassis Fan Connector (4-pin)
• 1x Power Fan Connector (3-pin)
• 1x 24 pin ATX Power Connector
• 1x 8 pin 12V Power Connector
• 1x Front Panel Audio Connector
• 3x USB 2.0 Headers (Support 6 USB 2.0 ports)
• 1x USB 3.0 Header by AMD A78 FCH (Bolton-D3) (Supports 2 USB 3.0 ports)

Съхранение:

•  6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

Комплектът включва:

• Упътване за бързо стартиране
• 2x SATA 3Gb/s кабели

Сертификати: FCC, CE и WHQL
