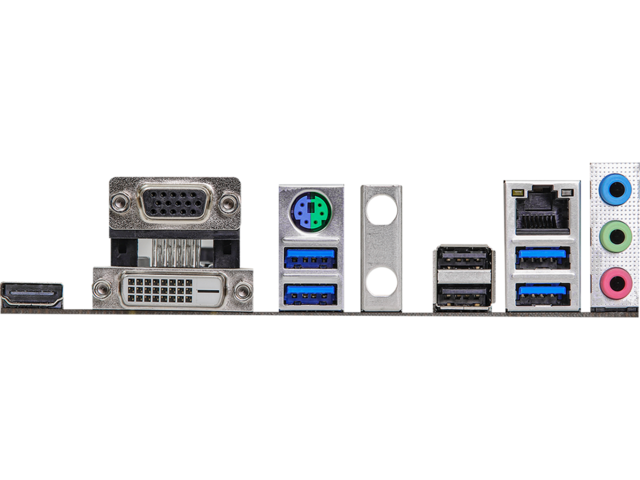

Интерфейс:

• 1 x Antenna Bracket
• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

Памет:

• 2 x DDR4 DIMM, поддържащи до 64GB системна памет
• Архитектура с две канални памети
• DDR4 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, небуферирана памет
• Поддържа ECC UDIMM
•  Intel Extreme Memory Profile (XMP) 2.0
• 15μ Gold Contact in DIMM Slots

Слотове за разширение:

• 1 x PCI Express 3.0 x16 Slot
• 1 x PCI Express 3.0 x1 Slot

• 1 x M.2 сокет (клавиш E), поддържа тип 2230 WiFi/BT PCIe WiFi модул

Съхранение:

• 4 x SATA3 6.0 Gb/s
• Поддържа RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 17)

• 1 x Ultra M.2 сокет (M2_1), поддържа M Key тип 2260/2280 M.2 SATA3 6.0 Gb/s модул и M.2 PCI Express модул до Gen3 x4 (32 Gb/s)

Конектори:

• 1 x Print Port Header
• 1 x COM Port Header
• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)*
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
• 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
