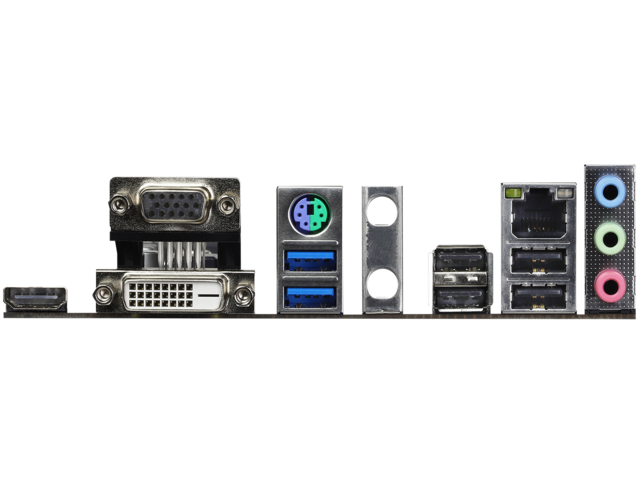

Интерфейси:

• 1 x Antenna Bracket
• 1 x PS/2 порт за мишка/клавиатура
• 1 x DVI-D
• 1 x D-Sub
• 1 x HDMI
• 4 x USB 2.0 порта
• 2 x USB 3.2 Gen 1 порта
• 1 x RJ-45 LAN порт с LED (ACT/LINK LED и SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

Слотове за разширение:

• 1 x PCI Express 3.0 x16 Slot
• 1 x PCI Express 3.0 x1 Slot
• 1 x M.2 Socket (Key E), поддържа тип 2230 WiFi/BT модул

Конектори:

• 1 x Print Port Header
• 1 x COM Port Header
• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Съхранение:

• 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
• 1 x Ultra M.2 Socket (M2_1), поддържа M Key тип 2260/2280 M.2 SATA3 6.0 Gb/s модул и M.2 PCI Express модул до Gen3 x4 (32 Gb/s)

Памет:

• 2 x DDR4 DIMM цокъла, поддържащи до 64GB системна памет
• Архитектура с две канални памети
• 2933/2800/2666/2400/2133 MHz Non-ECC, небуферирана памет
•  Intel Extreme Memory Profile
