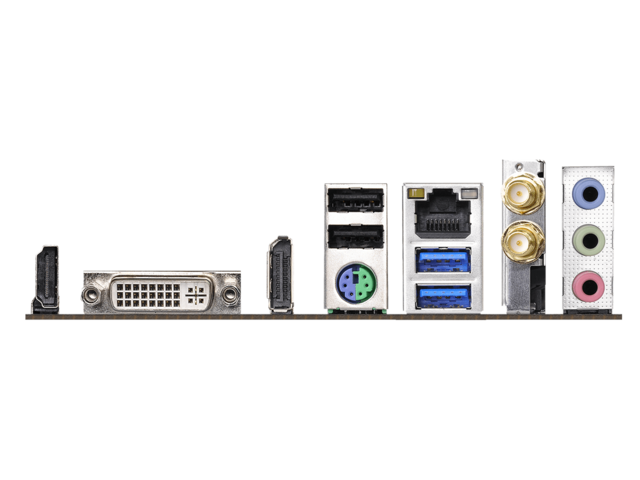

Интерфейси:
- 2 x Antenna Ports
- 1 x PS/2 порт за мишка и клавиатура
- 1 x DVI-I Port
- 1 x HDMI Port
- 1 x DisplayPort 1.2
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD аудио жака: Line in / Front Speaker / Microphone
Слотове за разширение:
- 1 x PCI Express 3.0 x16 слот (PCIE2: x16 режим)
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
Конектори:
- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x Chassis Fan Connector (4-pin)**
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Съхранение:
- 4 x SATA3 6.0 Gb/s конектори, поддържащи NCQ, AHCI и Hot Plug
- 1 x M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s)
Памет:
- двуканална технология на паметта DDR4
- 2 x DDR4 DIMM слота
- Поддържа DDR4 2666 / 2400 / 2133 non-ECC, небуферирана памет
- Максимален капацитет на паметта: 32GB
- Поддържа Intel Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots
Wireless Data Network и Bluetooth:
- Wi-Fi 802.11 a/b/g/n/ac
- Поддържа двубандова честота 2.4/5 GHz+ 60GHz
- Bluetooth 4.2
