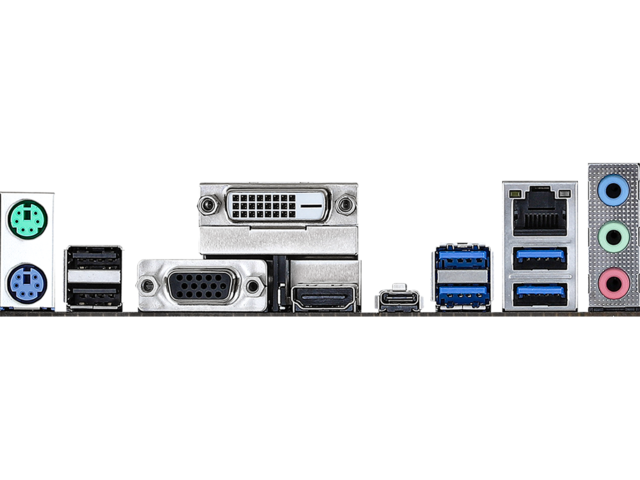

Интерфейси:

• 1 x PS/2 Mouse Port
• 1 x PS/2 Keyboard Port
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 2 x USB 2.0 Ports (Supports ESD Protection)
• 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
• 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

Слотове за разширение:

• Процесори от серията AMD Ryzen (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge и Pinnacle Ridge):
  • 1 x PCI Express 3.0 x16 слот (PCIE2: x16 режим)
  • 1 x PCI Express 2.0 x16 слот (PCIE3: x4 режим)
• Процесори от серията AMD Ryzen (Picasso, Raven Ridge):
  • 1 x PCI Express 3.0 x16 слот (PCIE2: x8 режим)
  • 1 x PCI Express 2.0 x16 слот (PCIE3: x4 режим)
• Процесори от серията AMD Athlon:
  • 1 x PCI Express 3.0 x16 слот (PCIE2: x4 режим)
  • 1 x PCI Express 2.0 x16 слот (PCIE3: x4 режим)
• 1 x PCI Express 2.0 x1 слот
• Поддържа AMD Quad CrossFireX™ ​​и CrossFireX™

Конектори:

• 1 x COM Port Header
• 1 x TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 1 x Addressable LED Header
• 1 x AMD Fan LED Header
• 1 x CPU Fan Connector (4-pin)
• 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)
• 1 x Chassis Fan Connector (3-pin)
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 1 x AMD LED Fan USB Header
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

Съхранение:

•  4 x SATA3 6.0 Gb/s конектора , поддръжка на RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
• 1 x Ultra M.2 Socket (M2_1), поддържа M Key тип 2242/2260/2280 M.2 PCI Express модул до Gen3 x4 (32 Gb/s) (с Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge и Pinnacle Ridge) или Gen3 x2 (16 Gb/s) (с APU серия Athlon)
• 1 x M.2 Socket (M2_2), поддръжка на M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module
